NPI Lasers Super Tune Series
VIS/NIR · 중적외선 MIR · 양자 캐스케이드 QCL
Tunable Infrared Lasers & Supercontinuum Sources
NPI Lasers 한국 공식 대리점 · 스탠다드 사이언스
Authorized Distributor in Korea
직접배송 · 기본 무료
파장 가변 적외선·QCL 광원 · Tunable IR Lasers
SuperTune은 VIS/NIR 초연속광원, 2 μm 파장 가변 광섬유 레이저, MIR OPO 및 QCL(Quantum Cascade Laser, 양자 캐스케이드 레이저)로 구성됩니다. 적외선 분광, 가스 센싱, 실리콘 포토닉스와 나노·양자 소재 분광 연구의 요구 조건에 따라 광원을 선택하세요. QCL의 실제 파장과 튜닝 폭은 칩·모델에 따라 달라지며, CW·변조·펄스 동작은 각 모델 사양에서 확인할 수 있습니다.
NPI Lasers SuperTune spans VIS/NIR supercontinuum, tunable 2 μm fiber, mid-IR OPO and quantum cascade laser platforms. Compare wavelength coverage and operating mode for spectroscopy, gas sensing and photonics. QCL tuning range is chip-dependent; CW and pulsed configurations have distinct specifications.
IR·QCL 레이저 선택 가이드 · Tunable Infrared Guide →NPI LASERS · SPECIFICATIONS

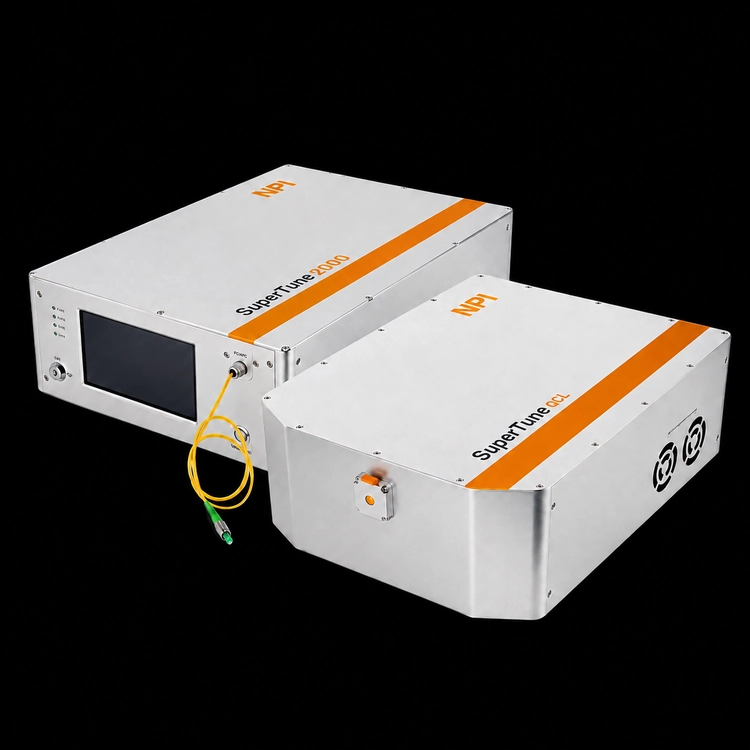

SuperTune Series
Tunable & Broadband Laser Sources
SuperTune VIS/NIR
450–2000 nm · Supercontinuum
| Operating Wavelength | 450–2000 nm |
|---|---|
| Pulse Width (FWHM) | 60 ± 10 ps |
| Average Power | >500 mW |
| Repetition Rate | 50 kHz–2 MHz |
| Power Stability | <1.5% RMS (12 h at 25°C) |
| Polarization | Random |
| Beam Quality | TEM₀₀, M² <1.2 |
| Output Type | Free-space (Line-Select option); fiber FC/APC |
| Supply Voltage | 100–240 VAC |
| Dimensions | 455 × 320 × 145 mm |
SuperTune MIR
Signal / Idler · Fiber Laser Pumped OPO
| Operating Wavelength | Signal: 1.4–1.8 µm Idler: 2.6–4.3 µm |
|---|---|
| Output Power | Signal: 0.3 W at 1.7 µm Idler: >1.2 W at 3.5 µm |
| Spectral Linewidth | <1 nm |
| Power Stability | <2% RMS (12 h at 25°C) |
| Beam Quality | M² <1.4 |
| Control Mode | PC software |
| Output Type | Spatially collimated output |
| Supply Voltage | 220 VAC |
| Dimensions | 594 × 575 × 150.2 mm |
SuperTune QCL · Model A
Broadband · CW / Modulated
| Operating Wavelength | 4–12 µm |
|---|---|
| Tuning Range | 300–500 nm (>30 cm⁻¹) |
| Output Bandwidth | <0.5 cm⁻¹ |
| Average Power | >20 mW |
| Power Stability | <2% RMS |
| Working Mode | CW / modulated |
| Wavelength Accuracy | <1 cm⁻¹ |
| Tuning Step | 1 cm⁻¹ |
| Spot Size / Spatial Mode | 3 ± 1 mm / TEM₀₀ |
| Supply Voltage | 100–240 VAC |
| Dimensions | 440 × 340 × 175 mm |
SuperTune QCL · Model B
Ultra-broadband · Pulsed
| Operating Wavelength | 4–12 µm |
|---|---|
| Tuning Range | 1–2.5 µm (>200 cm⁻¹) |
| Output Bandwidth | <0.5 cm⁻¹ |
| Average Power | >1 mW |
| Power Stability | <2% RMS |
| Working Mode | Pulsed, 100 kHz–1 MHz |
| Wavelength Accuracy | <1 cm⁻¹ |
| Tuning Step | 1 cm⁻¹ |
| Spot Size / Spatial Mode | 3 ± 1 mm / TEM₀₀ |
| Supply Voltage | 100–240 VAC |
| Dimensions | 440 × 340 × 175 mm |
Common Specifications
| Operating Temperature | 15–35°C |
|---|---|
| Operating Humidity | 20–80%, non-condensing |
| Cooling | Air cooling |
QCL operating wavelength and tuning span depend on the selected laser chip and model. MIR output powers are specified at the wavelengths shown.
