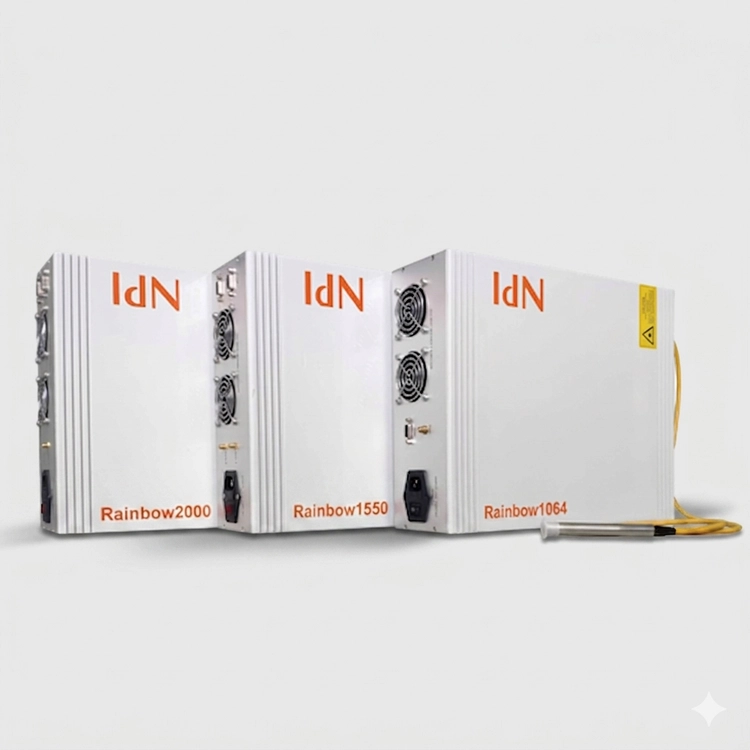

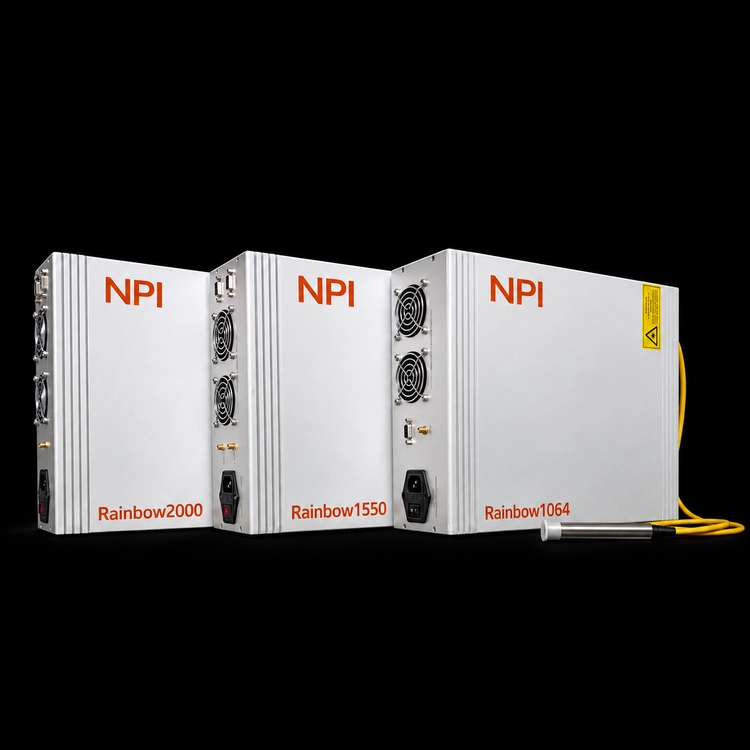

NPI Lasers Rainbow Pro Series

Name: NPI Lasers Rainbow Pro Series
Brand: NPI Lasers
Availability: InStock

가격문의(상세정보 참조)

초고속 광섬유 레이저 · SHG·비선형 광학 연구
Scientific Femtosecond & Picosecond Lasers

NPI Lasers 한국 공식 대리점 · 스탠다드 사이언스
Authorized Distributor in Korea

배송

직접배송 · 기본 무료

구매평

Q&A

0

구매평

Q&A

Central Wavelength	1030 ± 10 nm
Pulse Width (FWHM)	<200 fs
Average Power	>100 mW
Repetition Rate	25 MHz
Pulse Energy	>4 nJ
Beam Quality	M² <1.2
Power Stability	<0.5% RMS (12 h at 25°C)
Output Type	Spatially collimated output
Supply Voltage	12 VDC
Dimensions	260 × 194 × 115 mm

Central Wavelength	1064 ± 2 nm
Pulse Width (FWHM)	<15 ps
Average Power	>1 W
Repetition Rate	30 MHz 20–50 MHz optional
Spectral Width	<1.5 nm
Power Stability	<0.5% RMS (12 h at 25°C)
Output Type	Collimated output Spot diameter <2 mm
Supply Voltage	100–240 VAC
Dimensions	393 × 298 × 115 mm

Central Wavelength	1064 nm / 532 nm
Pulse Width (FWHM)	<15 ps
Average Power	1064 nm: >300 mW 532 nm: >350 mW
Repetition Rate	30 MHz 20–50 MHz optional
Beam Quality	M² <1.2 (both outputs)
Power Stability	<1% RMS (12 h at 25°C)
Output Type	Collimated output Beam diameter <2 mm
Supply Voltage	100–240 VAC
Dimensions	1064 nm: 401 × 342 × 106 mm 532 nm: 375 × 197 × 84 mm

Central Wavelength	1560 ± 10 nm / 780 ± 10 nm
Pulse Width (FWHM)	1560 nm: <80 fs 780 nm: <100 fs
Average Power	1560 nm: >100 mW 780 nm: >60 mW
Pulse Energy	1560 nm: >1.25 nJ 780 nm: >0.75 nJ
Repetition Rate	80 MHz
Power Stability	<0.5% RMS (12 h at 25°C)
Output Type	PM1550 fiber, FC/APC connector; spatially collimated output
Supply Voltage	100–240 VAC
Dimensions	392 × 346 × 126 mm

연구용 펨토초·피코초 레이저 · Rainbow Pro

Polarization Extinction Ratio	>20 dB
Operating Temperature	15–35°C
Operating Humidity	20–80%, non-condensing
Cooling	Air cooling
